Step 1: Go to Siemens NX Student Edition on Academic Software and click on the button 'Go to Siemens NX' on the right to go to the Siemens website.
Step 2: Fill in the requested data to apply for your NX Student Edition. Then click on the button 'Start my free trial'. If you already have an account, click on 'Already have an account?
Step 3: Now you will receive an email with a confirmation button. Go to this email and click on 'Verify Email'.

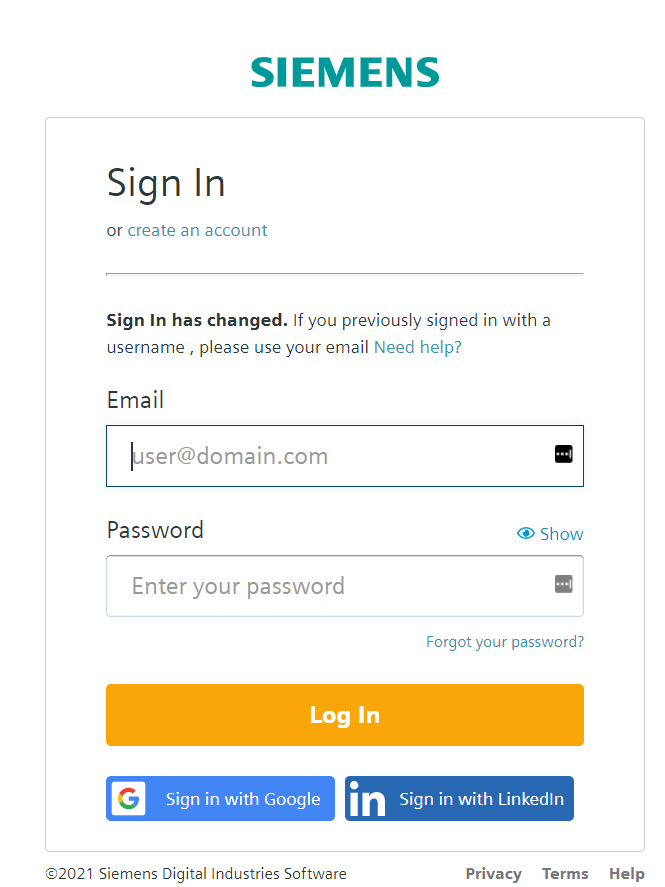

Step 4: Then log in with your email and password.
Step 5: You will then see the following screen. Click on the button 'Download NX Student Edition'.
Step 6: Under Downloads, select Student Edition and click on the button 'NX 1926 Series Student Edition'.
Step 7: You will see the following screen. Download the Zip file and the .lic file.
Step 8: Unpack the Zip file into a folder on your computer and then open the file 'SiemensNXStudentEdition.msi'. This is the Installation Wizard.
Step 9: You will see the following welcome screen. Click on Next to continue.

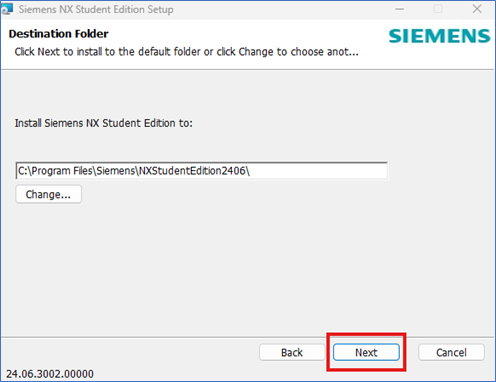

Step 10: Then choose the location where you want to install Siemens NX Student Edition on your computer. Click on Next to continue.

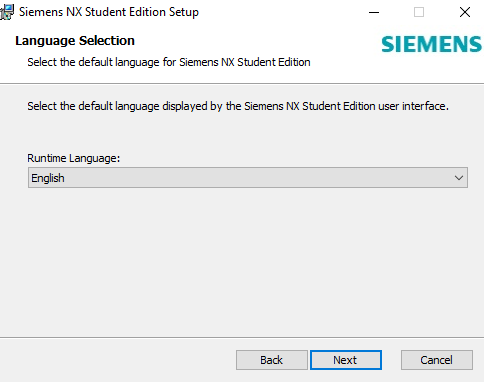

Step 11: Then select the language for the user interface of Siemens NX Student Edition.

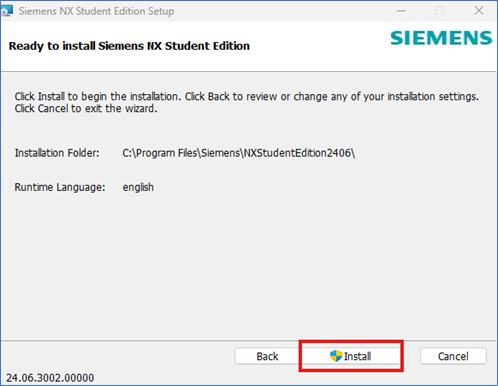

Step 12: Now click on Install to start the installation.

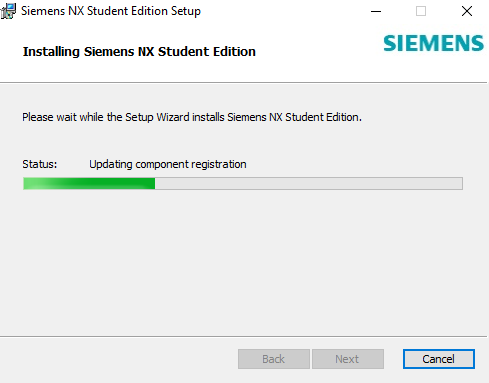

Step 13: Siemens NX Student Edition is being installed.
Step 14: Siemens NX Student Edition is installed. Click on Finish to exit the Setup Wizard.
Step 15: Then go to the licence file (NXSTUDENTLICENSE.lic) that you downloaded. Copy this file to the UGII folder in the Siemens installation folder. You can find this folder on your C-disc under Program Files > NXStudentEdition1926.
You will get the message that there is already a file with the same name in that folder. You should replace this old licence file with the new one you have just downloaded.
Step 16: Click on the NX icon to launch the software.
Step 17: The software is now ready to use.
